Both side supper mirror buffing machine for Stainless steel coil
The synchronization of the whole line is stable, the operation is simple, the board input and output are fast, efficient, and the response speed is fast, and the emergency stop automatically protects the board surface.
The area of the whole line is reasonably designed, the basic engineering is simple and practical, the engineering cost is reduced, the site layout is convenient for operators to control, and the production is safe.
High automation, only need two operators, high efficiency.
- OUYIGANG
- FOSHAN
- One Months
- 1 Set/ Month
- Information
- Video

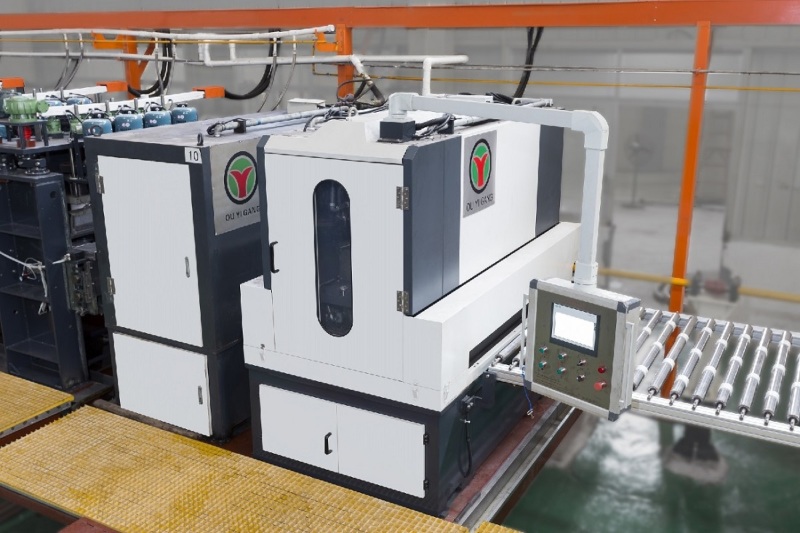

Both side supper mirror buffing machine
for Stainless steel coil
Product Description
OUYIGANG machinery performs automated and manual metal polishing services, for directional grain, non-directional grain and mirror applications.
To meet the growing demand, we specialize in polishing large size sheets and plates up to 144" wide and 420" long. We've also strategically developed a unique niche with our focus on 48" and 72" wide sheets.
We offer #4 and #6 brush finishes lengthwise, cross-grain, or non-directional patterns.
In addition to #7 dull mirror or #8 bright mirror finishes that are available on all shapes.
Upon request, we can deliver a complete range of Ra finishes with our current certifications. When it applies to a project, we can apply PVC film and laser tape as a protective coating.
At FoShan OUYIGANG Metal Company , we always work with customers' timetables and provide consistent finishes that meet our customers' specifications, from piece-to-piece and lot- to-lot.
In addition, we are ISO 9001:2008 certified and meet international quality standards. To learn more about all of our capabilities contact us directly.
Other parameters
| Type | 1250 type |
Processing Width (mm) | 1000～1250 |
Processing coil thickness (mm) | 0.3～2.0 |
Feeding speed (m/min) | 0.5～1.2 |
Transmit speed (m/min) | 1.0～3.0 |
Component of production line

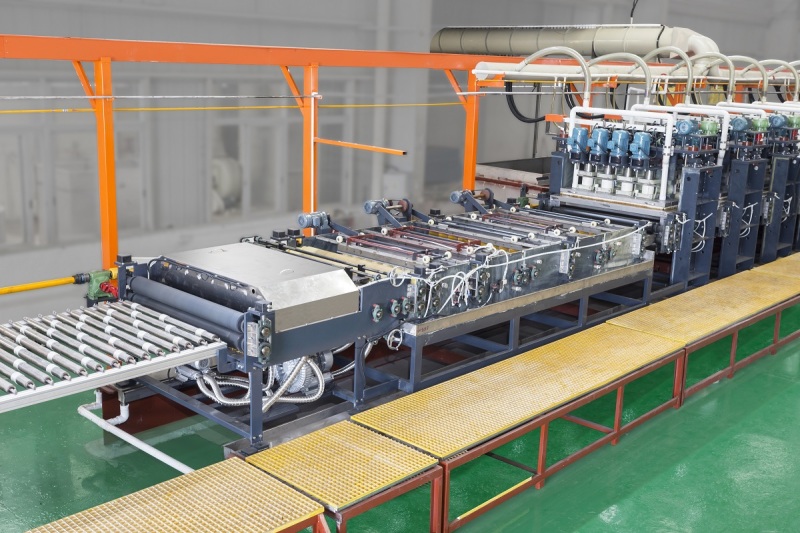

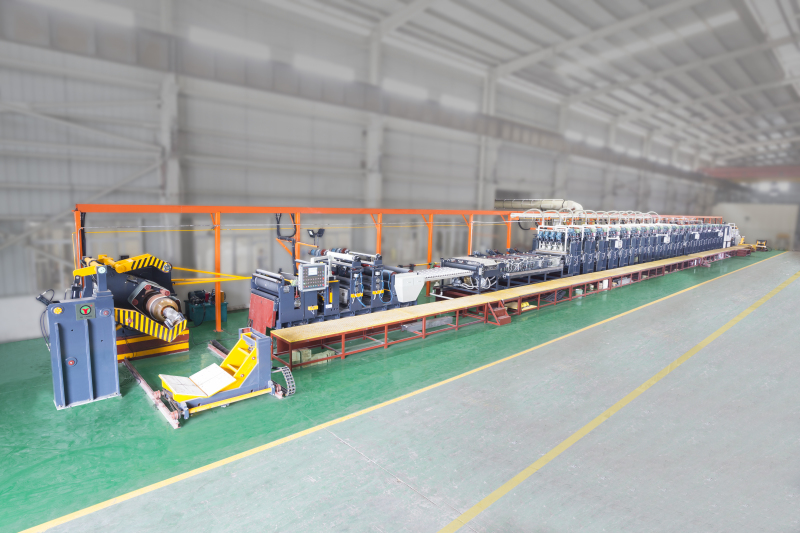

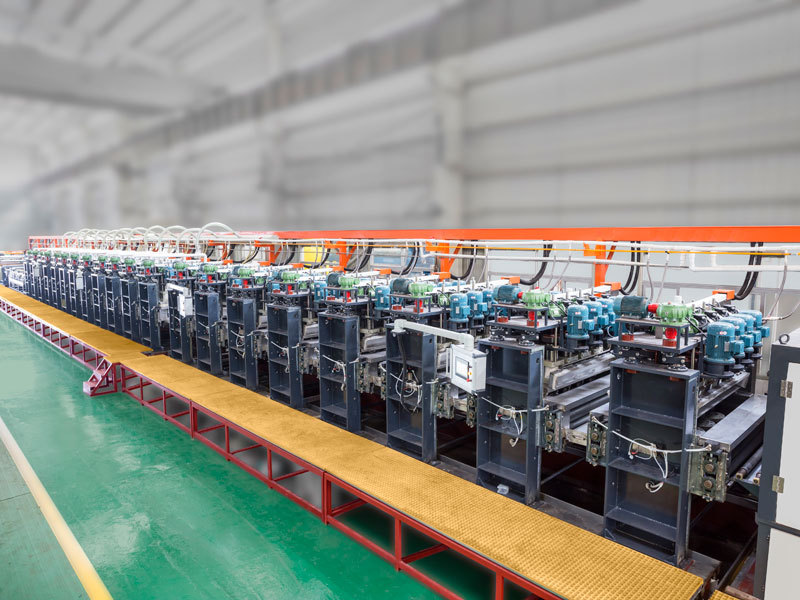

1250 mm stainless steel sheet and coil 8K polishing production line
8K buffing machine

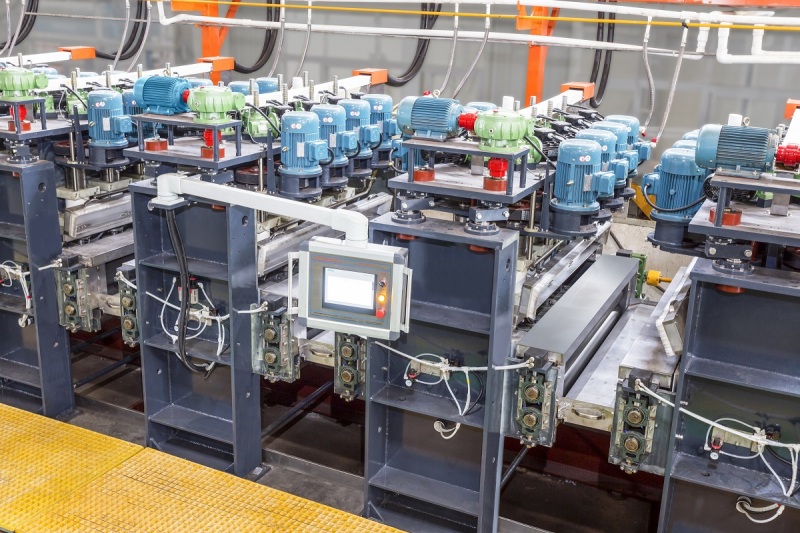

Double head of the oscillate SB polishing machine

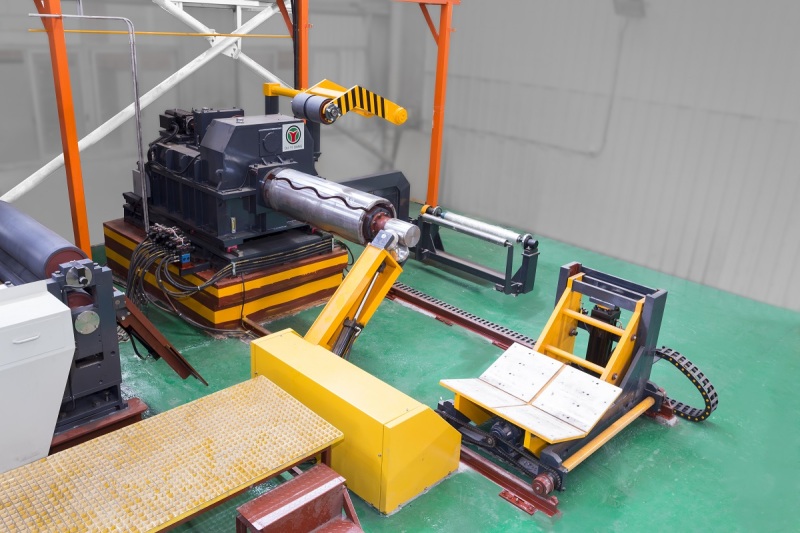

Hydraulic Un- coiler

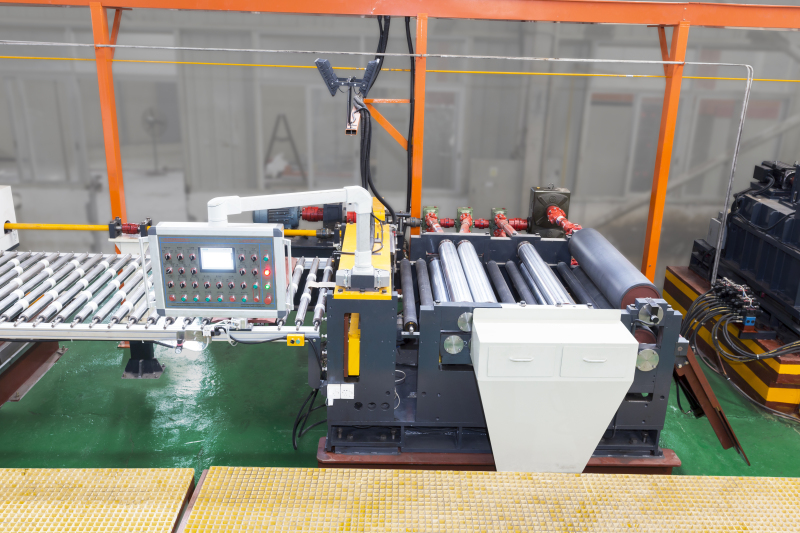

Pinch and leveling/ Cutting machine
The feeding table with automatic vacuum suck plate
Electric transmit table
Hydraulic lifting storage table
Cleaning and drying system
Automatic laminating machine
Automatic suck plate with feeding table
Shipping table with the transmit belt
Hydraulic lift and down stacker
Tension table

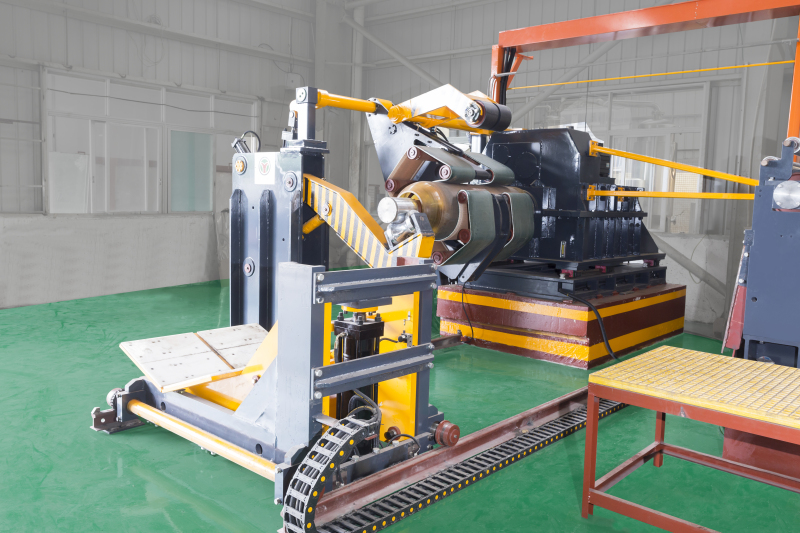

Hydraulic Coiler
Winder with the belt
Hydraulic System
The electricity Control System
The filter system of the grinding material
Processing capability
No.4 finish
The basic sheet selection is to be of 2B or BA sheet and should be preferably polished with 150#,180# abrasive belt. The application verticals of this finish to name a few are in cookware, furniture, elevator, architectural decoration, revolving door, exterior decoration etc,.
HAIRLINE finsh
The basic sheet selection should preferably be of No.4 satin surface stainless steel sheet and should be subjected to polish with 150# 240#abrasive belt. The application verticals of this finish to name a few are in elevator, architecture decoration, revolving door, furniture, home appliance, auto sector, exterior decoration, etc,.
Scotch Brite-Satin finish
The basic sheet selection should preferably be of No.4 satin surface stainless steel sheet and should be subjected to polish with abrasive wheels or pads. . The application verticals of this finish to name a few are in architecture decoration, elevators and escalators, furniture, etc,.
No.6 finish
These finishes are produced using rotating cloth mops (tampico fibre,muslin or linen) which are loaded with abrasive paste.The finish depends on how fine an a abrasive is used and the uniformity and finish of the original surface. The finish as a non directional texture of varing reflectivity.Satin blend is an example of such a finish.
No.7 finish
This is a buffed finish having a high degree of reflectivity.It is produced by progressively using finer and finer abrasives and finishing with buffing compounds. Some fine scratches may remain from the original starting surface.
No.8 super mirror finish
This is produced in an equivalent manner to a No.7 finish, the final operation being done with extremely fine buffing compounds. The final surface is blemish free with a high degree of image clarity and is the true mirror finish.
No.9 super mirror finish
Very high degree of reflectivity, brilliant, smooth finish produced by polishing with progressively finer grit abrasives then buffing. Super mirror creates light and space. Best for design, decoration and architecture.
Contact us
Tel:86-757-88627213
Fax: 86-757-88627213
Mobile phone:+86-13425703089 (David Qiu)
Address detail :Factory No.19,Xingliang Road, Hecheng Street,Gaoming District, Foshan City,Guangdong Province,China.
Province:GuangDong
Country:China
Q1. How to get the most suitable polishing machine and best price
A: Please tell the material you want to working on? and the specification of your working material?
Q2. Do you have the manual of the polishing machine Except the automatic machinery?
A: Yes, we have.
Q3. If we don’t know how to use the polishing machine, can you teach us?
A: our customer support engineer will go to cutomer's factory to install the machine , and they will teach the skilled labor complete knowledge about the machine.
Q4. Do you have the machinery applying to the special steel sheet?
A: When the sheet thinckness comes to 4mm and more then 4mm, or there is some special performance to your sheet,it is suggested that the customer come to our company talk about the technical requirement with our engineers.
Q5. What is the useful life of your machine?
A: The useful life of the equipment depend mainly on the maintainability, and our machine can be used for more then 6 years ,most of it come to above 10 years under normal operation and maintenance.
