Buffing Machine For Stainless Steel Coil
Combining foreign advanced design concepts and cutting-edge technology, using Siemens functions to develop a patented CNC operating system, it is the future trend of metal surface processing equipment, with automation, high efficiency, energy saving, safety, stability and other characteristics.
After years of research and development, combined with the actual use of a number of patented technologies of our company, it has the characteristics of automation, high efficiency, energy saving, safety and stability.
- OUYIGANG
- FOSHAN
- One Months
- 1 Set/ Month
- Information
- Video

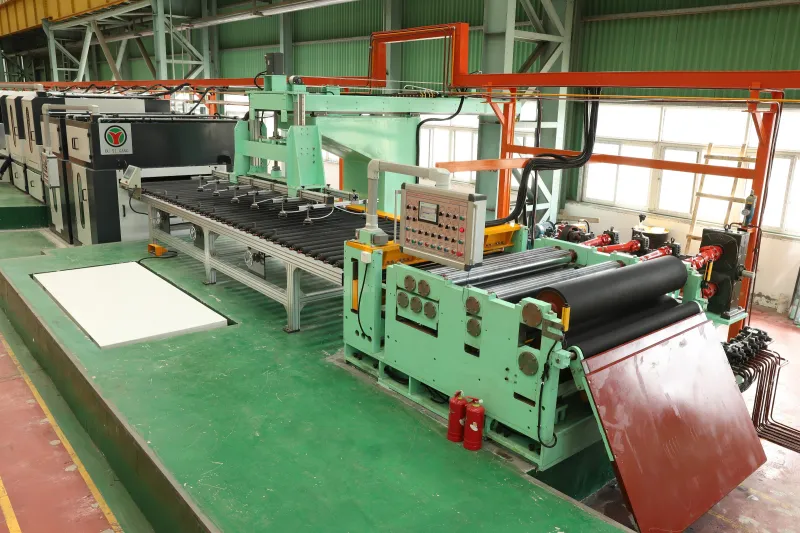

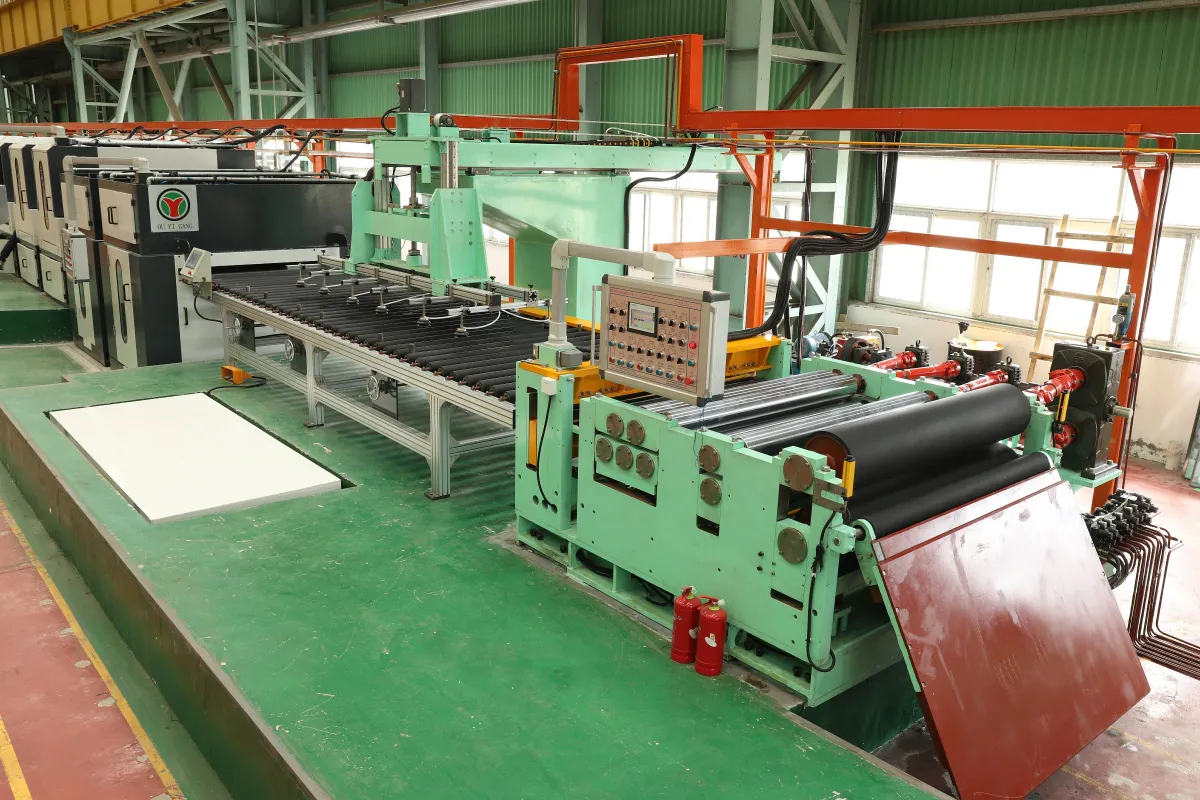

Buffing Machine For Stainless Steel Coil

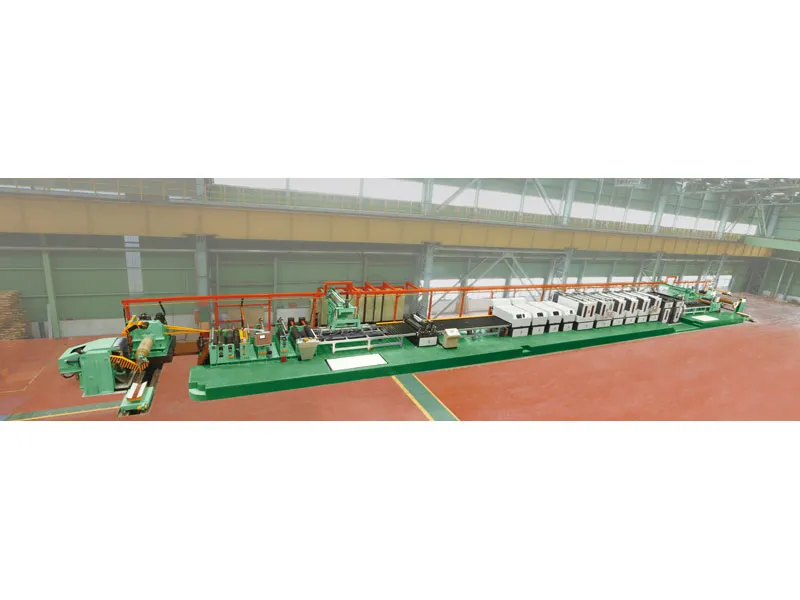

Production line components

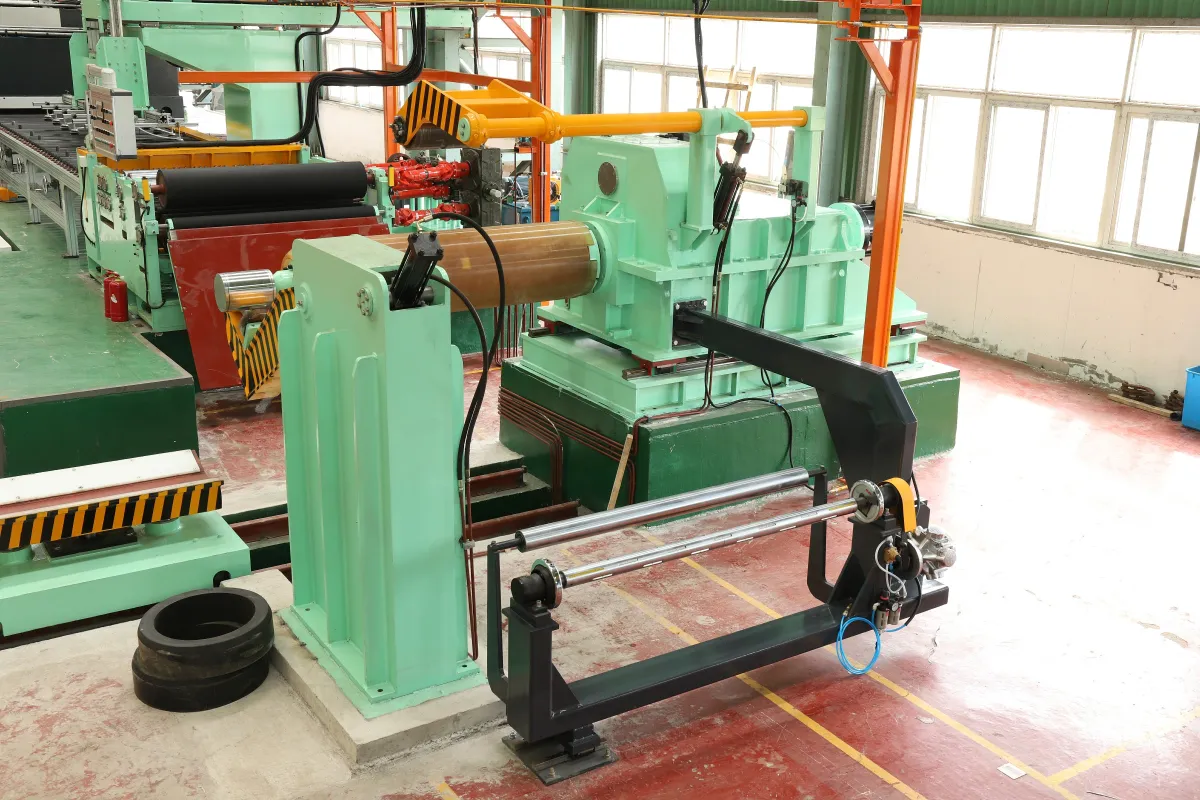

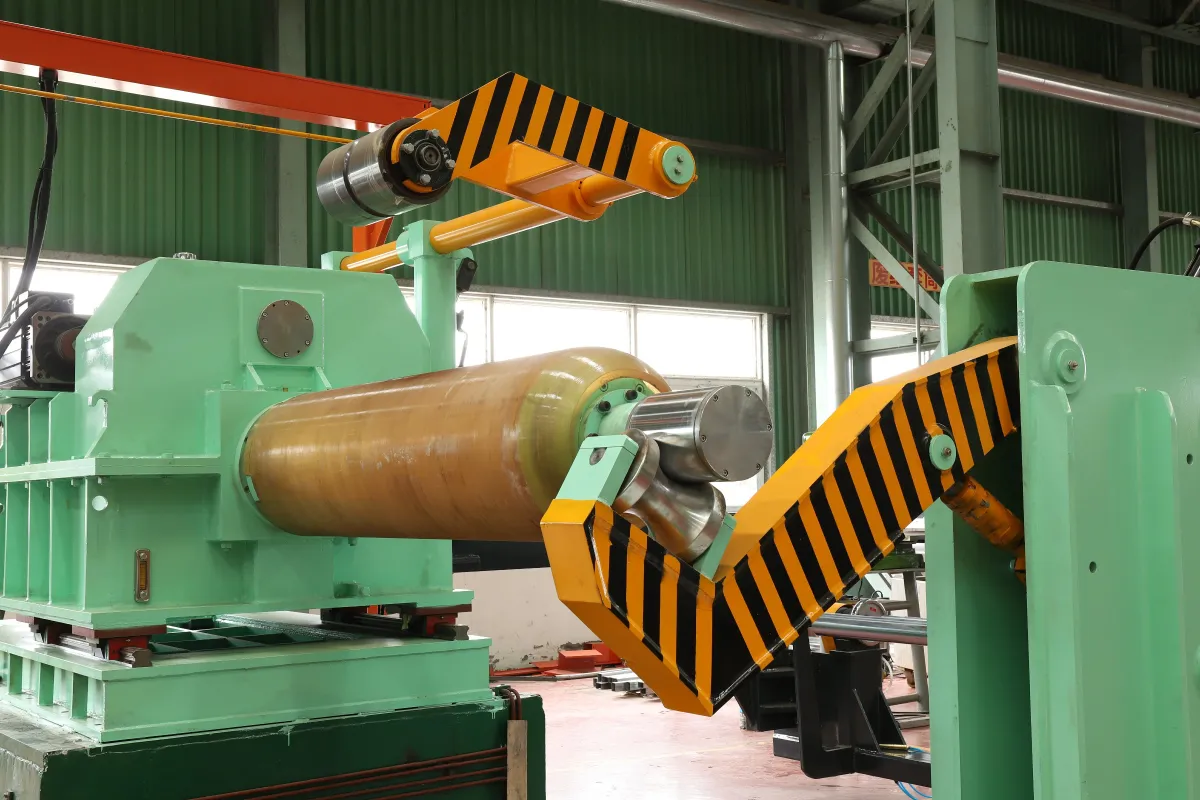

1.Unwinding Machine
2.Pinch Leveling Cutting
3.Paper Collecting Unit
4.Auto Feeding Table
5.Bottom side NO.4 Polishing Machine

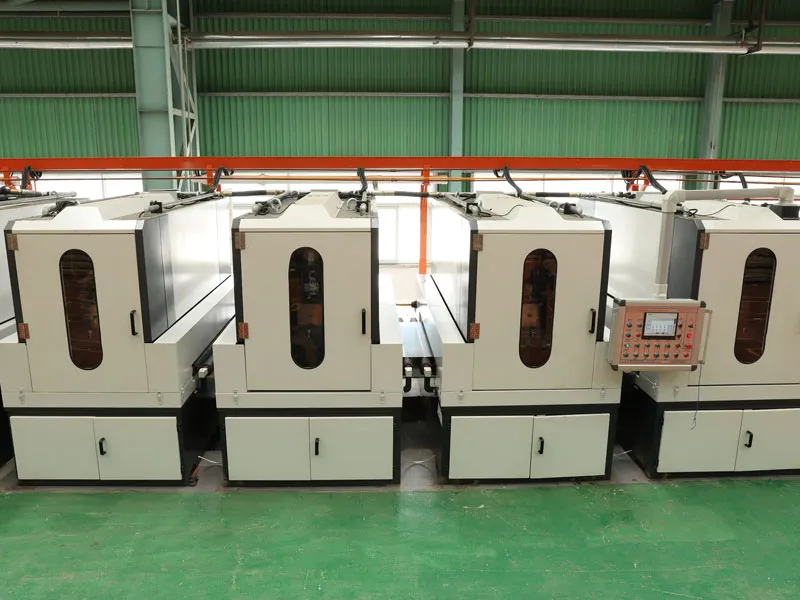

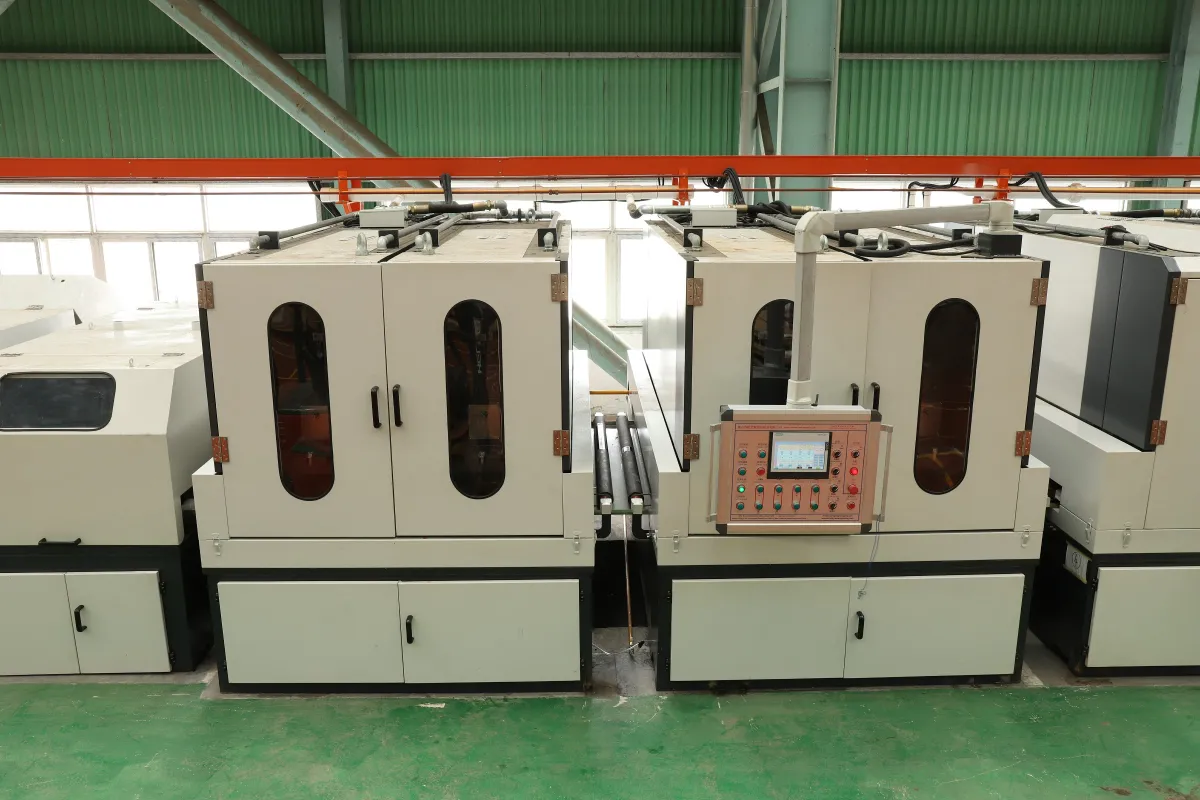

6.NO.4 Polishing Machine
7.Hairling Machine
8.Cleaning and Drying Machine
9.Fully Auto Laminator
10.Auto Unloading Table
11.Tension Device (Including CPC)
12.Recoiler
Function and characteristic
1. It applies to grinding the surface of 0.4mm-3.0mm 2B. BA stainless steel sheet, making the sheet have scotch bright effect.
2. Delivery with rolling wheel, motor variable frequency adjusting the speed, roll synchrodrive
Via the worm reduction box, deliver smoothly, preventing the sheet slip during the processing.
3. The floor of the platform is made up of organic toughened glass, increasing its working life.
4. Reasonable design to the point control part, it is more reliable and safer.
5. The material for swing parts is specially treated, having excellent wear-resistant
6. Refining grinder is made of A-alloy, so as to achieve the effect of corrosion-resistant, acid-resistant, wear-resistant.
THE PARAMETERS OF STAINLESS STEEL COIL PRODUCTION LINE
| Plate thickness (mm) | 0.4~3.0 | 0.4~3.0 |
| Plate width (mm) | 1250 | 1550 |
| Speed (m/min) | 6~60 | 6~60 |
| Coil outer diameter (mm) | 1900 | 1900 |
| Coil inner diameter (mm) | 508 (610) | 508 (610) |
| Uncoil bearing (T) | 22 | 25 |
| Length of production line (mm) | 37 | 39 |
| The total power unit (KW) | 465 | 568 |
