Stainless Steel Coil Buffing Machine Aotumatic
The synchronization of the whole line is stable, the operation is simple, the board input and output are fast, efficient, and the response speed is fast, and the emergency stop automatically protects the board surface.
The area of the whole line is reasonably designed, the basic engineering is simple and practical, the engineering cost is reduced, the site layout is convenient for operators to control, and the production is safe.
High automation, only need two operators, high efficiency.
- OUYIGANG
- FOSHAN
- One Months
- 1 Set/ Month
- Information
- Video
Stainless Steel Coil Buffing Machine Aotumatic
Function and characteristic:
1. It applies to grinding the surface of 0.4mm-3.0mm 2B. BA stainless steel sheet, making the sheet have scotch bright effect.
2. Delivery with rolling wheel, motor variable frequency adjusting the speed, roll synchrodrive
Via the worm reduction box, deliver smoothly, preventing the sheet slip during the processing.
3. The floor of the platform is made up of organic toughened glass, increasing its working life.
4. Reasonable design to the point control part, it is more reliable and safer.
5. The material for swing parts is specially treated, having excellent wear-resistant
6. Refining grinder is made of A-alloy, so as to achieve the effect of corrosion-resistant, acid-resistant, wear-resistant.
Main components

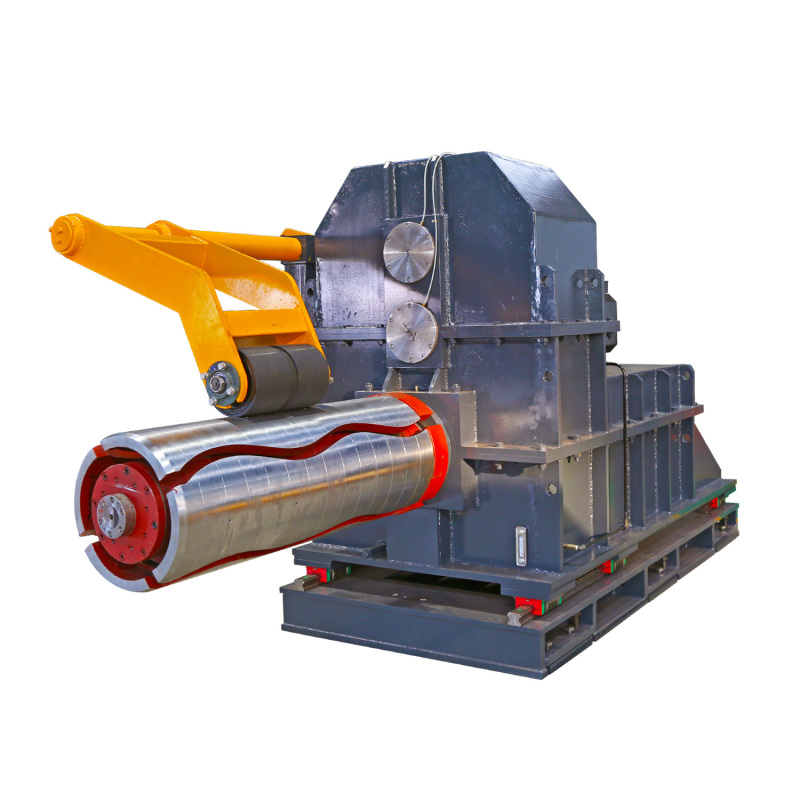

1.Unwinding Machine

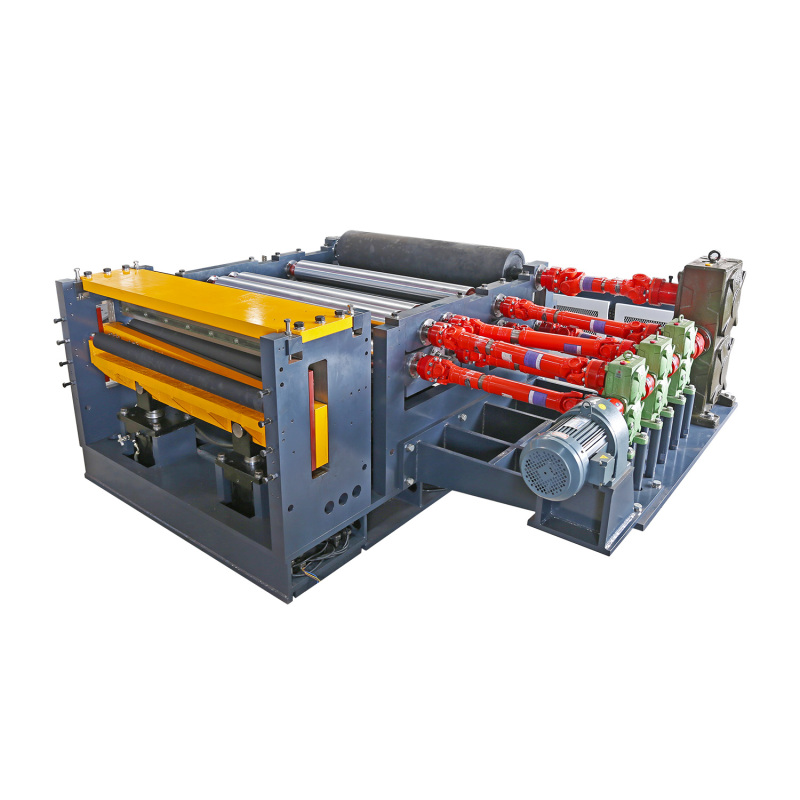

2.Pinch Leveling Cutting
3.Paper Collecting Unit
4.Auto Feeding Table
5.Bottom side NO.4 Polishing Machine
6.NO.4 Polishing Machine
7.Hairling Machine
8.Cleaning and Drying Machine
9.Fully Auto Laminator
10.Auto Unloading Table
11.Tension Device (Including CPC)
12.Recoiler
THE PARAMETERS OF STAINLESS STEEL COIL PRODUCTION LINE
| Plate thickness (mm) | 0.4~3.0 | 0.4~3.0 |
| Plate width (mm) | 1250 | 1550 |
| Speed (m/min) | 6~60 | 6~60 |
| Coil outer diameter (mm) | 1900 | 1900 |
| Coil inner diameter (mm) | 508 (610) | 508 (610) |
| Uncoil bearing (T) | 22 | 25 |
| Length of production line (mm) | 37 | 39 |
| The total power unit (KW) | 465 | 568 |
