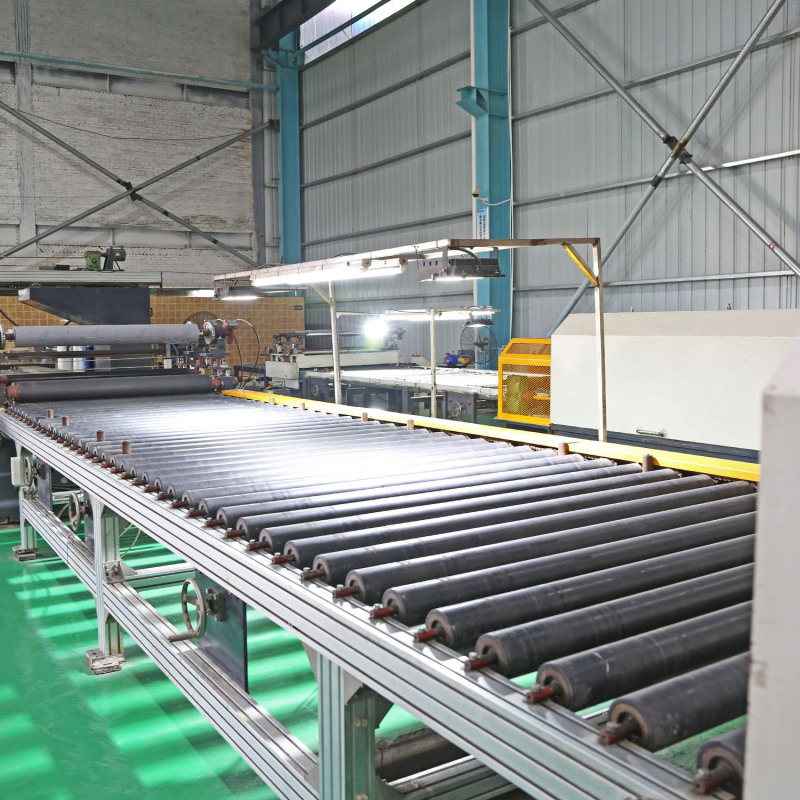

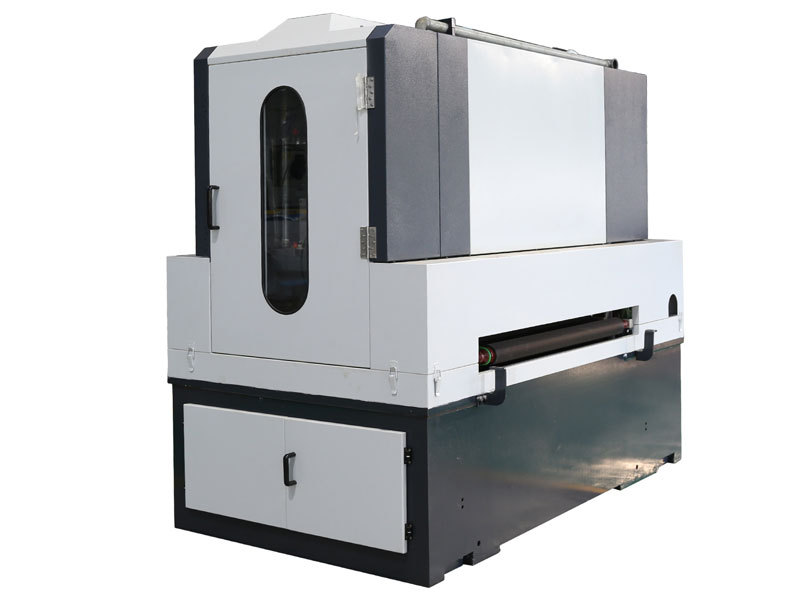

CNC Stainless Steel Sheet Polishing Machine
Function and the characteristic
1. It applies to HL drawing processing the surface of the 0.4mm-3.0mm stainless steel sheet.
2. Roll wheel deliver with worm-driven ,adjusting speed and frequency conversion with steady transmission.
3. Using electric grinder frequency control, adjusting speed is available.
4. Grinding roll up and down digital control can show the figures on the screen, the machine have memory function, it can adjust itself automatically when input the thickness of the sheet.
5. The important components of the machine are all made of stainless steel.
- OUYIGANG
- FOSHAN
- One Months
- 1 Set/ Month
- Information
- Video
Cnc Stainless Steel Sheet Polishing Machine
Function and the characteristic
1. It applies to HL drawing processing the surface of the 0.4mm-3.0mm stainless steel sheet.
2. Roll wheel deliver with worm-driven ,adjusting speed and frequency conversion with steady transmission.
3. Using electric grinder frequency control, adjusting speed is available.
4. Grinding roll up and down digital control can show the figures on the screen, the machine have memory function, it can adjust itself automatically when input the thickness of the sheet.
5. The important components of the machine are all made of stainless steel.
Basic specification for the machine
Belt abrasive station | No.4 | / | Hairline |
Brush abrasive station | / | SB | / |
System | Wet roller grinding | Wet roller brushing | Wet roller grinding |
No. of working unit | 2-3 grinding heads | 2-4 polishing heads | 2-3 grinding heads |
Machine weight | Appro 13T | 11T | 13T |
Working width | 900,1250,1500mm, customized available | ||
Sheet size | 1250X2500mm 1550X3000mm customized available | ||
Sheet thickness min / max | 0.3-4mm | 0.3-4mm | 0.3-4mm |
Roller dimensions(Od X width) | 300mm | 350mm | 250mm |
Abrasive belt width | Depending on the sheet width
| ||
Abrasive belt length | 2620mm | 2620mm | |
Speed of the line | 6-25m/min | 6-25m/min | 6-25m/min |
Processing capability
No.4 finish
The basic sheet selection is to be of 2B or BA sheet and should be preferably polished with 150#,180# abrasive belt. The application verticals of this finish to name a few are in cookware, furniture, elevator, architectural decoration, revolving door, exterior decoration etc,.
Hairline finsh
The basic sheet selection should preferably be of No.4 satin surface stainless steel sheet and should be subjected to polish with 150#/240# abrasive belt. The application verticals of this finish to name a few are in elevator, architecture decoration, revolving door, furniture, home appliance, auto sector, exterior decoration, etc,.
Scotch Brite-Satin finish
The basic sheet selection should preferably be of No.4 satin surface stainless steel sheet and should be subjected to polish with abrasive wheels or pads. . The application verticals of this finish to name a few are in architecture decoration, elevators and escalators, furniture, etc,.
No.6 finish
These finishes are produced using rotating cloth mops (tampico fibre,muslin or linen) which are loaded with abrasive paste.The finish depends on how fine an a abrasive is used and the uniformity and finish of the original surface. The finish as a non directional texture of varing reflectivity.Satin blend is an example of such a finish.
No.7 finish
This is a buffed finish having a high degree of reflectivity.It is produced by progressively using finer and finer abrasives and finishing with buffing compounds. Some fine scratches may remain from the original starting surface.
No.8 true mirror finish
This is produced in an equivalent manner to a No.7 finish, the final operation being done with extremely fine buffing compounds. The final surface is blemish free with a high degree of image clarity and is the true mirror finish.
No.9 super mirror finish
Very high degree of reflectivity, brilliant, smooth finish produced by polishing with progressively finer grit abrasives then buffing. Super mirror creates light and space. Best for design, decoration and architecture.
Packaging & Shipping
Packaging: all of the machine, equipment and spare parts spray the rustproof oil, cover with oil paper and plastic film.
Shipping: arrange technical workers to load the machine with crane , fixed the machine to the container with strong steel rope, and guarantee your machine shipped to your port without any human causing damage.
After-Sale Services
We supply life time technique service to our customer and just charge basic cost for comsumable parts.
About Us
OUYIGANG is one of the companies engaged in the production of stainless steel surface processing machinery and equipment. After more than 20 years of development, the company has accumulated excellent technology and management team, and won the recognition of customers and excellent reputation in the industry.
Over the years committed to the research and development of the production of stainless steel CNC sanding machine (No.4), stainless steel polishing machine, stainless steel snowflake drawing machine (HL), stainless steel CNC short grain machine (SB), stainless steel mirror steel machine (8K), grinding machine, grain machine, cleaning machine, CNC lamination machine, winding machine, unwinding machine and other equipment.
Specialized is engaged in the 200, 300 and 400 series stainless steel plate surface treatment and shear distribution services, the company with a number of international leading technology of stainless steel surface treatment production line and intelligent precision machining production line, the surface state satisfy the ultra fine grinding 8 k, No. 4 (snowflake sand), HL (filament), SB (sand smooth) grain of sand and other special custom requirements; To provide customers from the strip, cutting, cutting, plate, laminating, pad paper to distribution and other personalized customized processing center services.
The company's products are mainly used in high-end home appliances, tableware, kitchenware, bathroom, elevator, building decoration, hardware products, precision electronics and various new energy water heaters and many other industries.
The company has excellent production equipment, advanced technology, perfect inspection and considerate service, based on the Pearl River Delta, radiation at home and abroad, to serve the majority of end customers.
FOSHAN OUYIGANG engaged in design and manufacturing the stainless steel surface processing machinery,the factory of OUYIGANG occupies above 20000 square meters, we are the high-tech company of more than 15years production history, which gather science research,design,produce,sale install,adjust and maintenance.
