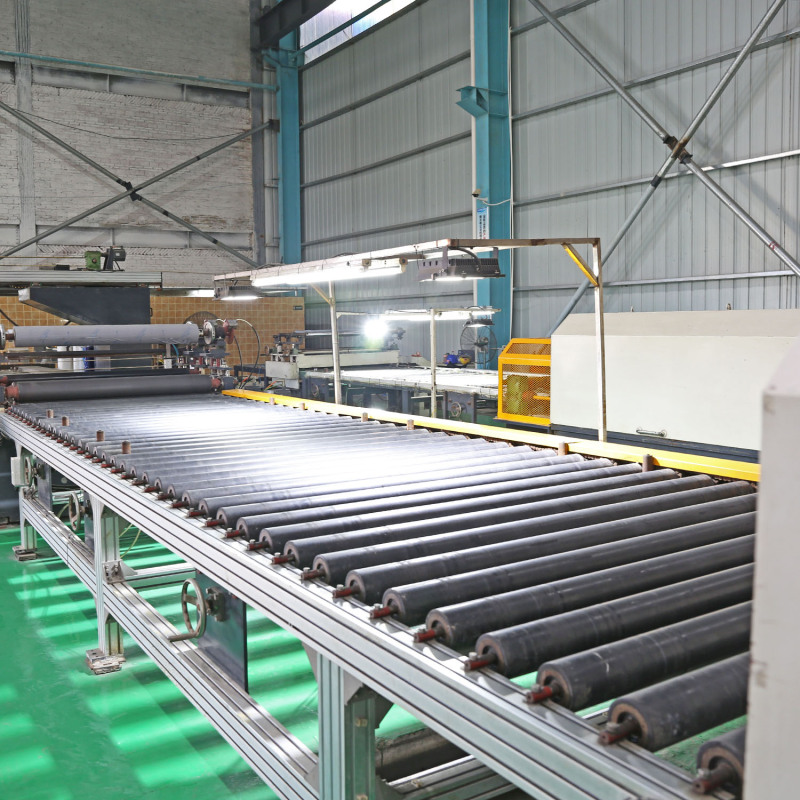

Metal Polishing Machine With Auto Suction Unit
OUYIGANG is one of the companies engaged in the production of stainless steel surface processing machinery and equipment. After more than 20 years of development, the company has accumulated excellent technology and management team, and won the recognition of customers and excellent reputation in the industry.
Over the years committed to the research and development of the production of stainless steel CNC sanding machine (No.4), stainless steel polishing machine, stainless steel snowflake drawing machine (HL), stainless steel CNC short grain machine (SB), stainless steel mirror steel machine (8K), grinding machine, grain machine, cleaning machine, CNC lamination machine, winding machine, unwinding machine and other equipment.
Specialized is engaged in the 200, 300 and 400 series stainless steel plate surface treatment and shear distribution services, the company with a number of international leading technology of stainless steel surface treatment production line and intelligent precision machining production line, the surface state satisfy the ultra fine grinding 8 k, No. 4 (snowflake sand), HL (filament), SB (sand smooth) grain of sand and other special custom requirements; To provide customers from the strip, cutting, cutting, plate, laminating, pad paper to distribution and other personalized customized processing center services.
The company's products are mainly used in high-end home appliances, tableware, kitchenware, bathroom, elevator, building decoration, hardware products, precision electronics and various new energy water heaters and many other industries.
The company has excellent production equipment, advanced technology, perfect inspection and considerate service, based on the Pearl River Delta, radiation at home and abroad, to serve the majority of end customers.
- OUYIGANG
- FOSHAN
- One Months
- 1 Set/ Month
- Information
- Video

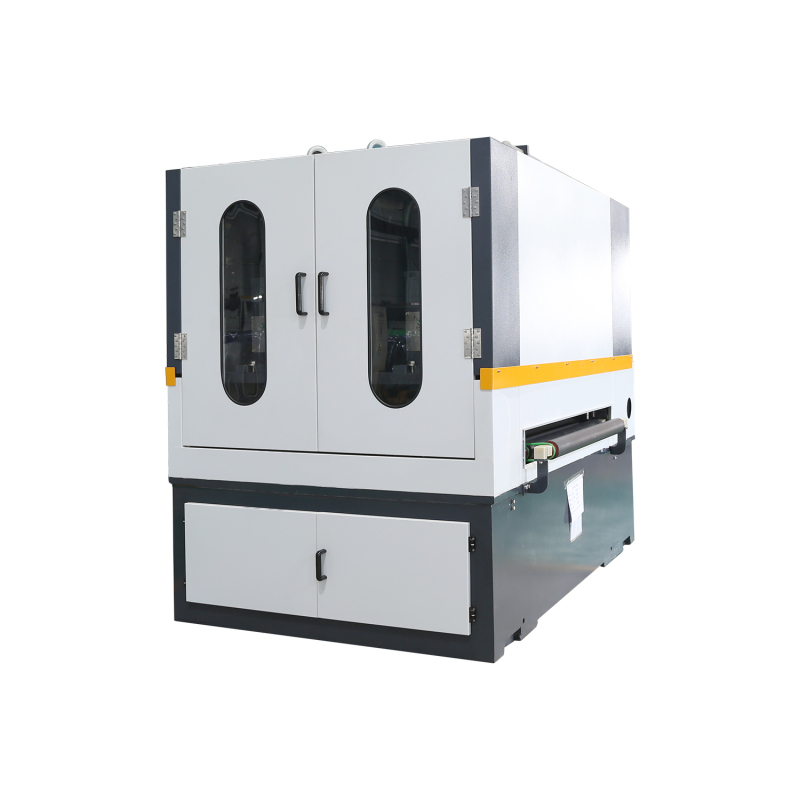

Metal Polishing Machine With Auto Suction Unit
Basic specification for the machine:
Belt abrasive station | No.4 | / | Hairline |
Brush abrasive station | / | SB | / |
System | Wet roller grinding | Wet roller brushing | Wet roller grinding |
No. of working unit | 2-3 grinding heads | 2-4 polishing heads | 2-3 grinding heads |
Machine weight | Appro 13T | 11T | 13T |
Working width | 900,1250,1500mm, customized available | ||
Sheet size | 1250X2500mm 1550X3000mm customized available | ||
Sheet thickness min / max | 0.3-4mm | 0.3-4mm | 0.3-4mm |
Roller dimensions(Od X width) | 300mm | 350mm | 250mm |
Abrasive belt width | Depending on the sheet width
| ||
Abrasive belt length | 2620mm | 2620mm | |
Speed of the line | 6-25m/min | 6-25m/min | 6-25m/min |
The Advantages:
Whole line drive motor, feed roller and force roller, drive roller and film roller, leveling roller and bottom roller, over roller, worm gear reducer, connector, universal shaft, bearing seat, feed roller pressure cylinder, water pump, belt, filter paper, exchange common spare parts to customers to save a large amount of costs, purchase time to save a lot of manpower and material resources, spare parts storage location save, Reduce inventory overhang.
The whole line synchronization is stable, easy to operate, fast in and out of the board, the board head and tail control in the range of 600 ~ 1000mm effective grinding, high efficiency and energy saving, speed up and deceleration response speed, emergency stop automatic protection of the board, the operation and use of personnel are not tired and safe.
The whole line covers an area of reasonable design, basic engineering is simple and practical, reduce engineering costs, environmental protection use of waste water to achieve O discharge, site layout is convenient for operators to control, safe production.
Sander sand belt line speed of 40 meters per second, greatly reduce the cutting oil and sand belt, improve the grinding speed of 40 to 50 meters per minute, matching the grinding effect of the board, to ensure that the sand grain is clear, uniform and bright, good three-dimensional texture, reduce the cutting oil, sand belt and cleaning costs, more effective control of plating color plate, improve the yield.
Hairline machine adopts ring sand belt, cutting fluid spray drawing, better protection of the board surface, thickness and fine sand number matching is selective, quick replacement, improve the board surface sand pattern clear and uniform, to meet customer market demand.
No.4 polishing machine adopts a diameter of 400 grinding head, improve the grinding effect, increase the frame and rigidity, ensure stability, improve the grinding efficiency, the board does not vibration pattern uniform bright, sand texture is good, to reach the industry leading equipment.
Separate subsection cleaning machine effectively control cleaning cleaner, cleaning waste water recycling better adjustment, replacement of water is not wasted, to achieve O discharge function.
Filter system clean, energy saving, automatic control, easy to clean, small footprint, easy to adjust the concentration of oil, the best equipment to save oil.
The equipment has good control, high efficiency, energy saving, environmental protection, excellent value, good cleaning and maintenance, good maintenance, fast replacement parts, strong practicability, high cost performance, is the ideal product for investors.
Key advantages of processing per square meter plate compared with other manufacturers to save 0.3 yuan, different thickness of the monthly processing of 3000 ~ 6000 tons of output, save nearly 2 ~ 4 million yuan a year running costs. The equipment is stable, the operation is simple and safe, and the production enterprises find the equipment with strong earning power is the truth.
Processing capability:
No.4 finish
The basic sheet selection is to be of 2B or BA sheet and should be preferably polished with 150#,180# abrasive belt. The application verticals of this finish to name a few are in cookware, furniture, elevator, architectural decoration, revolving door, exterior decoration etc,.
Hairline finsh
The basic sheet selection should preferably be of No.4 satin surface stainless steel sheet and should be subjected to polish with 150#/240# abrasive belt. The application verticals of this finish to name a few are in elevator, architecture decoration, revolving door, furniture, home appliance, auto sector, exterior decoration, etc,.
Scotch Brite-Satin finish
The basic sheet selection should preferably be of No.4 satin surface stainless steel sheet and should be subjected to polish with abrasive wheels or pads. . The application verticals of this finish to name a few are in architecture decoration, elevators and escalators, furniture, etc,.
No.6 finish
These finishes are produced using rotating cloth mops (tampico fibre,muslin or linen) which are loaded with abrasive paste.The finish depends on how fine an a abrasive is used and the uniformity and finish of the original surface. The finish as a non directional texture of varing reflectivity.Satin blend is an example of such a finish.
No.7 finish
This is a buffed finish having a high degree of reflectivity.It is produced by progressively using finer and finer abrasives and finishing with buffing compounds. Some fine scratches may remain from the original starting surface.
No.8 true mirror finish
This is produced in an equivalent manner to a No.7 finish, the final operation being done with extremely fine buffing compounds. The final surface is blemish free with a high degree of image clarity and is the true mirror finish.
No.9 super mirror finish
Very high degree of reflectivity, brilliant, smooth finish produced by polishing with progressively finer grit abrasives then buffing. Super mirror creates light and space. Best for design, decoration and architecture.
Equipment Features
Multi head brushing station, “all in one line ” equipment with No.4—No.6 , Scotch-Brite , Hairline finish
Control by PLC complete with touch screen
Most of the inside construction is made of tempered stainless steel
Horizontal axis rotating and oscillating system
Soft, bright and homogeneous surface appearance
oil and water mixed ,wet type processing
Adjustable brushing pressure
Adjustable brush speed
Easy abrasives brush roller replacement
Adjustable conveyor speed (belt / roller)
Different brush grits combinations are possible to perform different surface treatment
Emergency security switch
Reversal conveyor speed for emergency control
Packaging & Shipping:
Packaging: all of the machine, equipment and spare parts spray the rustproof oil, cover with oil paper and plastic film.
Shipping: arrange technical workers to load the machine with crane , fixed the machine to the container with strong steel rope, and guarantee your machine shipped to your port without any human causing damage.
After-sale Services:
We supply life time technique service to our customer and just charge basic cost for comsumable parts.
FOSHAN OUYIGANG engaged in design and manufacturing the stainless steel surface processing machinery,the factory of OUYIGANG occupies above 20000 square meters, we are the high-tech company of more than 15years production history, which gather science research,design,produce,sale install,adjust and maintenance.
Our company culture: loyalty,dedication, hard-work and cooperation
Company philosophy:Constant cooperation and mutual benefit, to create greater value for our customers.
Our service concept: Your little case is our big events.
The miss of our company: To pursuit perfect quality, then provide professional service.
Company vision: Building one centennial corporation, setting one international brand.
Company core value:
Observe disciplines and obey laws
Conscientious and love in work
Diligent and eager to learn
Cooperation and innovation
